Medit i700 wireless & i700 & i600 & i500 Intraoral Scanners
Available in Our Shop
Sleek Software Apps
The software Medit Link and scanner Medit are subscription-free and the latest free Apps include:
Medit Design (formerly known as “Medit Compare”)
This multifaceted app that can analyze, align, measure (including distance, area, length, and angle), and compare 3D data. It provides various tools such as “Boolean,” “Offset,” “Smooth Surface,” “Sculpting,” and many more to help you achieve your outcomes.
- Easy-to-follow explanations and guide messages accompany each step.
- Medit Design can be run from both Clinic and Lab Accounts in Medit Link.
Medit Smile Design
The software allowing to perform smile design by working on 2D images. Users can use the pre-set teeth templates and customize them with a number of various tools for modifying their color, shape, position and scale. Explicit explanations and guide messages are accompanying each stage on the left side of the window.
Medit Ortho Simulation
The software allowing to simulate the trajectory of teeth movement according to form information set by the user. It includes the function to create several possible outcome scenarios by adjusting position of each tooth. Explicit explanations and guide messages are accompanying each stage of the process.
Medit Crown Fit
The software that helps to perform a digital crown fitting test by checking the alignment between prepared teeth and milled prosthesis data in a couple of steps. Another great feature is the ability to compare milled and CAD data to inspect your milling machine or 3D printer. It also has some advanced data measurement and transformation features.
Medit i700 & i700 wireless Intraoral Scanner
Featherweight
Control Mode
Reversible Tips
Disinfection
Reversible Tips
Control Mode
Disinfection
Featherweight
Medit goes from strength the strength with the release of the Medit i700 scanner. This awarding winning scanner has built on the phenomenal success of the Medit i500.
- 25% smaller and 12% lighter than the Medit i500.
- 11 microns full-arch accuracy.
- Scan processing times are 4.5 times faster.
- Scans up to 100 frames per minute.
- Scanning window has been enlarged by 7% while maintaining the small size of the scanner head.
- UV-C Internal LED to aid in sterilization built into the scanner.
- Scanner head is reversible, it can be rotated 180 degrees and attached.
- Remote control button enables checking and manipulating scan data from the scanner itself without touching a keyboard. This includes switching between scan stages and rotating the scan.
- Master model can now be created from separate scan segments meaning you do not need to adhere to a specific scan strategy anymore.
- Orthodontic module now includes automatic tooth segmentation like iTero.
- Multiple bites registrations can be taken for each case.
Medit i600 Intraoral Scanner
180° Reversible Tip
Scan Start Button
Detachable Cable
Medit i600 can be directly connected to the PC using just one cable, eliminating limitations of wired devices between chairs and clinics for a wider scope of treatment using scanners.
Larger Scan Area (Compared to the i500)
A larger scan area (15X13mm) captures more in one swipe for a more convenient scanning experience.
Medit Link & Medit Scan
The scanner partners perfectly with the Medit Link software for an efficient, user-friendly experience and is simple to incorporate into your practice or lab for an optimised workflow. The upgrade Medit Link & Medit Scan provides an optimized and more powerful scanning solution for both Windows and macOS.
With the system you can undertake:
- A.I. Abutment & A.I. Scan Body Matching
- Margin Line Creation
- Pre-Operation Scanning
- Impression Scanning
- Occlusion Analysis
- Ortho Simulation
- Scan Replays

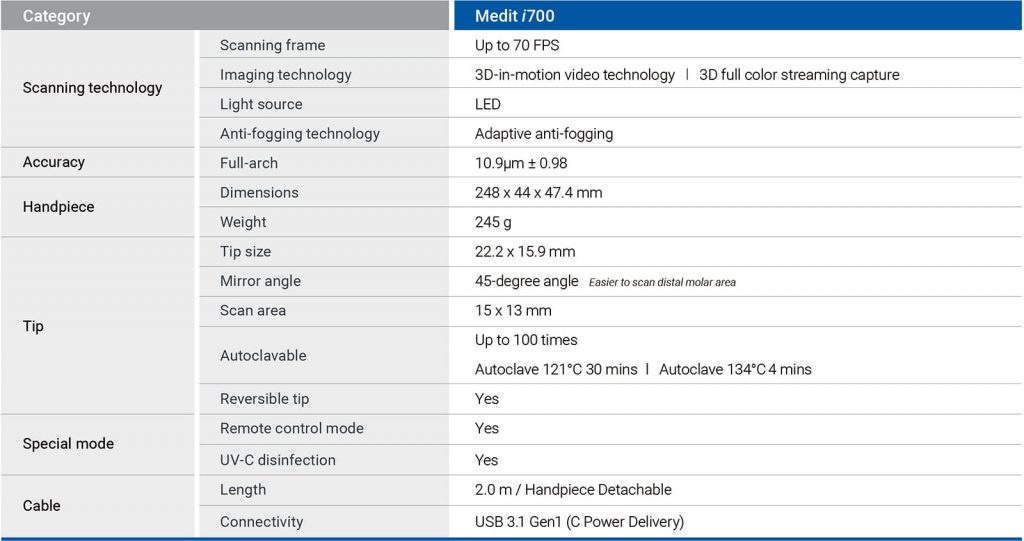

Comparison Table: Medit i500 vs i600 vs i700 vs i700 wireless
| i500 | i600 | i700 | i700 wireless | |
| Scanning frame | ≤ 30 FPS | ≤ 35 FPS | ≤ 70 FPS | ≤ 70 FPS |
| Imaging technology | 3D-in-motion video technology 3D full color streaming capture | 3D-in-motion video technology 3D full color streaming capture | 3D-in-motion video technology 3D full color streaming capture | 3D-in-motion video technology 3D full color streaming capture |
| LED light source | ✔ | ✔ | ✔ | ✔ |
| Anti-fogging technology | ✔ | ✔ | ✔ | ✔ |
| Full-arch | 21.0 μm±1.48 | 10.9μm ± 0.98 | 10.9μm ± 0.98 | 10.9μm ± 0.98 |
| Dimensions | 264 x 44 x 54.5mm | 248 x 44 x 47.4 mm | 248 x 44 x 47.4 mm | 313 x 44 x 47.4 mm |
| Weight | 280 g | 245 g | 245 g | 328 g (incl. battery) |
| Tip size | 19 x 15.2 mm | 22.2 x 15.9 mm | 22.2 x 15.9 mm | 22.2 x 17.1 mm |
| Mirror angle | 40° | 45° | 45° | 45° |
| Scan area | 14 x 13 mm | 15 x 13 mm | 15 x 13 mm | 15 x 13 mm |
| Autoclavable | ≤ 50x bei 121°C, 30 min | ≤ 100x bei 121°C, 30 min | bei 134°C, 4 min | ≤ 100x bei 121°C, 30 min | bei 134°C, 4 min | ≤ 150x bei 121°C, 30 min | bei 134°C, 4 min | bei 135°C 10 mins |
| Reversible tip | ✔ | ✔ | ✔ | |
| Remote control mode | ✔ | ✔ | ||
| UV-C disinfection | ✔ | ✔ | ||
| Length | 1.8 m | 2.0 m | 2.0 m | 1.0 m |
| Connectivity | USB 3.0 (non-detachable) | USB 3.1 Gen1 (C Power Delivery) | USB 3.1 Gen1 (C Power Delivery) | USB 3.1 Gen1 (Wireless Hub) |
Complete Set Up Solutions Medit Intraoral Scanners
Not only can we supply you with the Medit i700 wireless, i700, i600 and i500 scanners, but we can also provide you with everything you need to get started on your digital dentistry journey including the Medit Link software, laptop, viewing monitor and ergonomic system trolleys.
In addition, we offer installation, training for all your staff, and follow up support.
With no license fees, we have monthly payment and outright purchasing options so get in touch today to book a Medit i700 wireless / i700 / i600 / i500 demo with one of our friendly team members.
Call us on 020 3875 8530 (option 2 – Medimatch Supplies and then option 2)
or send us an email to medit@medimatch.co.uk
Book an Appointment
Want to discuss a case with us, need more information on the lab or Medit intraoral scanner?
We are now available for one-on-one online meetings via Zoom for any day meetings including weekends and evenings!
Please book via our online booking system and select the representative you would like to speak to.
- For Intraoral scanners – Amrita
- For cases or general lab queries – Hugo Van Loenen
How to connect Medit scanner to any Lab
Watch this short tutorial, in which we will show you how to connect your Medit intraoral scanners to any lab.
Medit scanners offer unmatched visualization technology, helping patients understand their conditions and treatment options.
MediMatch Dental Laboratory takes your virtual world scans and makes them into real world smiles.
